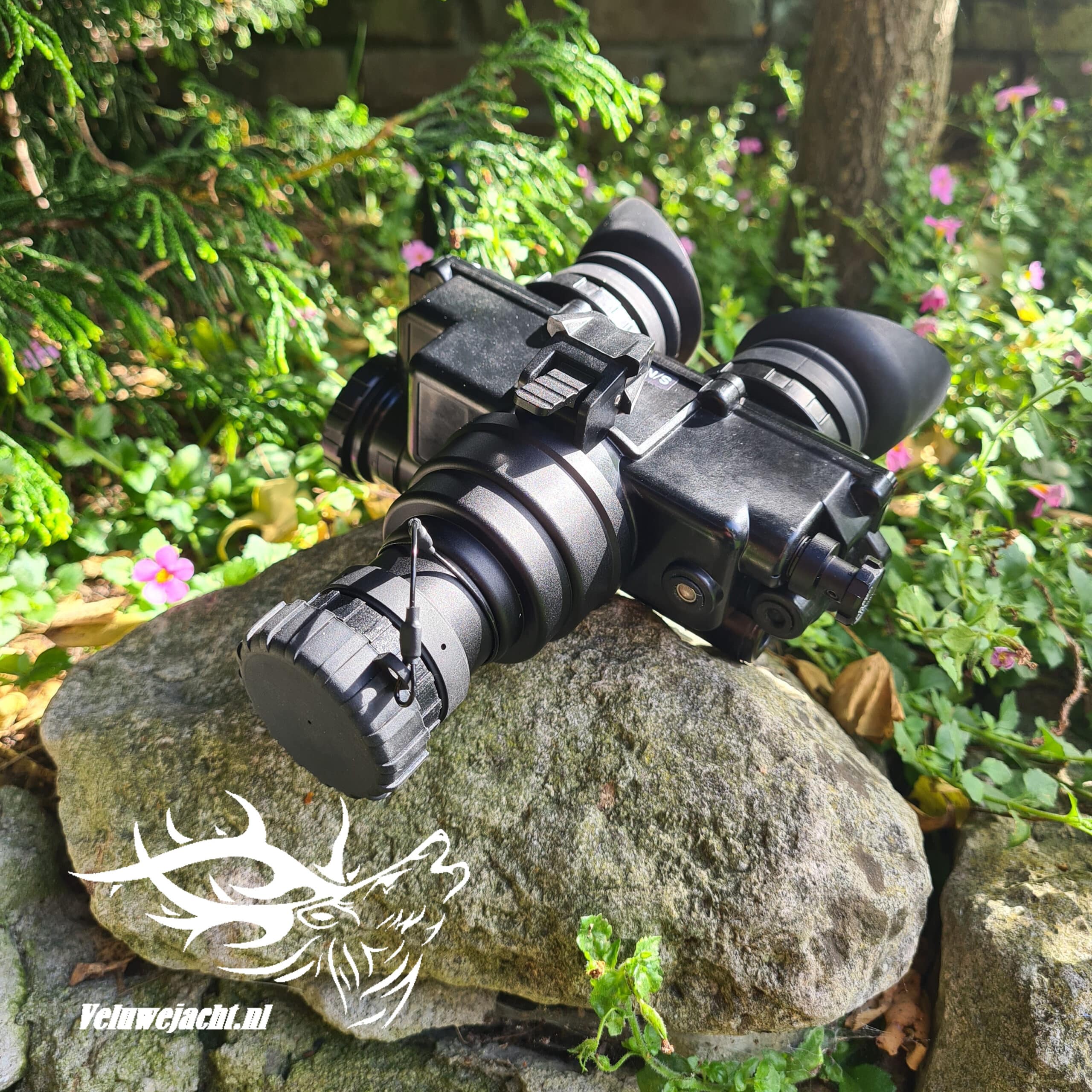

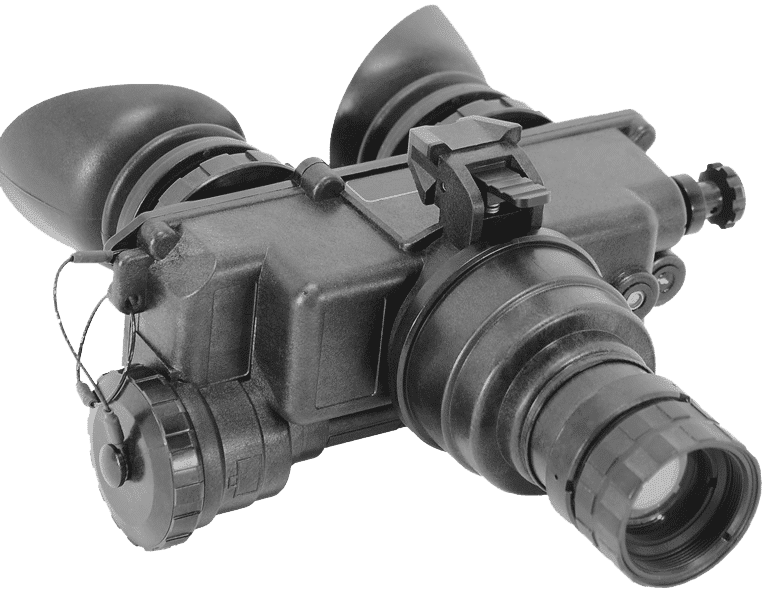

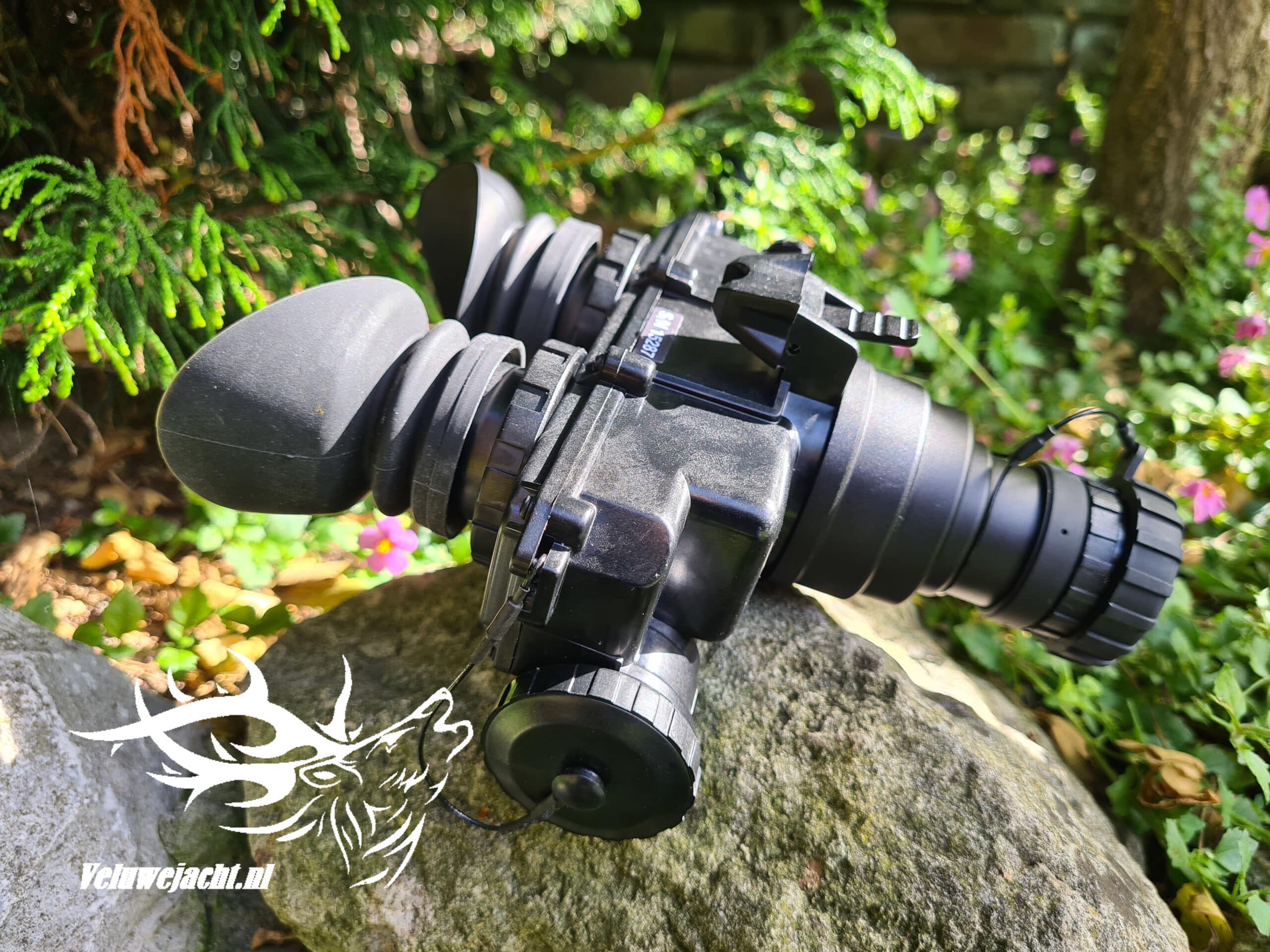

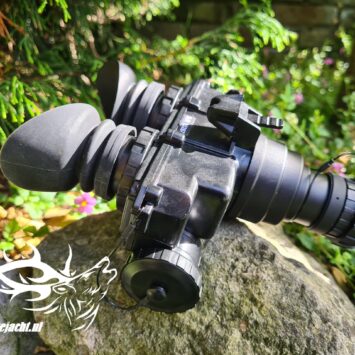

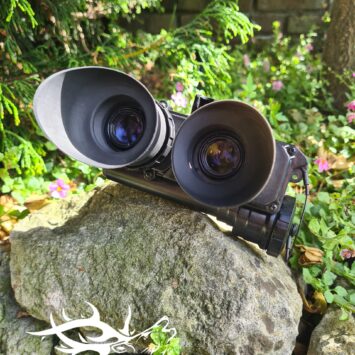

Pvs-7 nachtkijker goggle

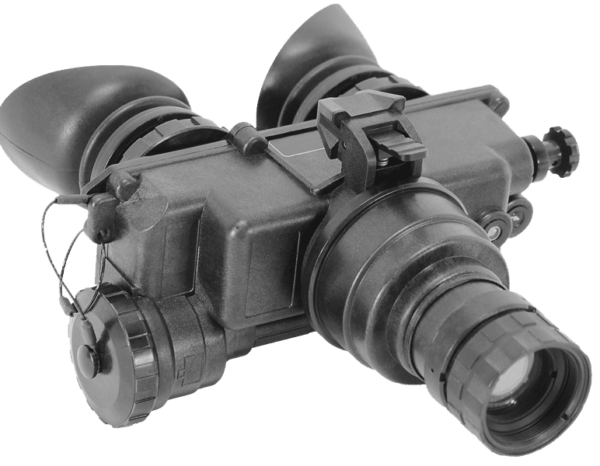

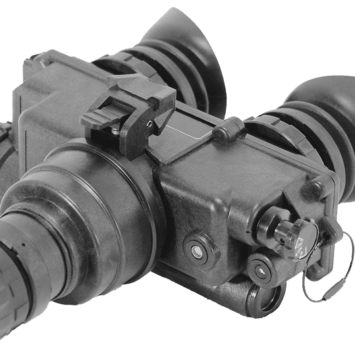

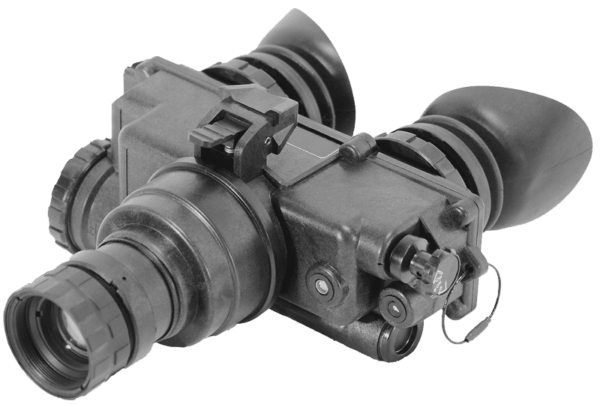

PVS-7 is the MIL-SPEC, “single-tube, dual-eye” Night Vision Goggle system, with optional enhancements compared to the conventional Pvs-7 nachtkijker goggle unit. Designed for army, law enforcement, search & rescue professionals, it is the preferred choice for conducting critical ground-based and maritime operations during night time. Using the best coated optics to enhance night time performance as well as the top-grade I2 tubes the PVS-7 from GSCI outperforms all other night vision goggles available on the professional market today.

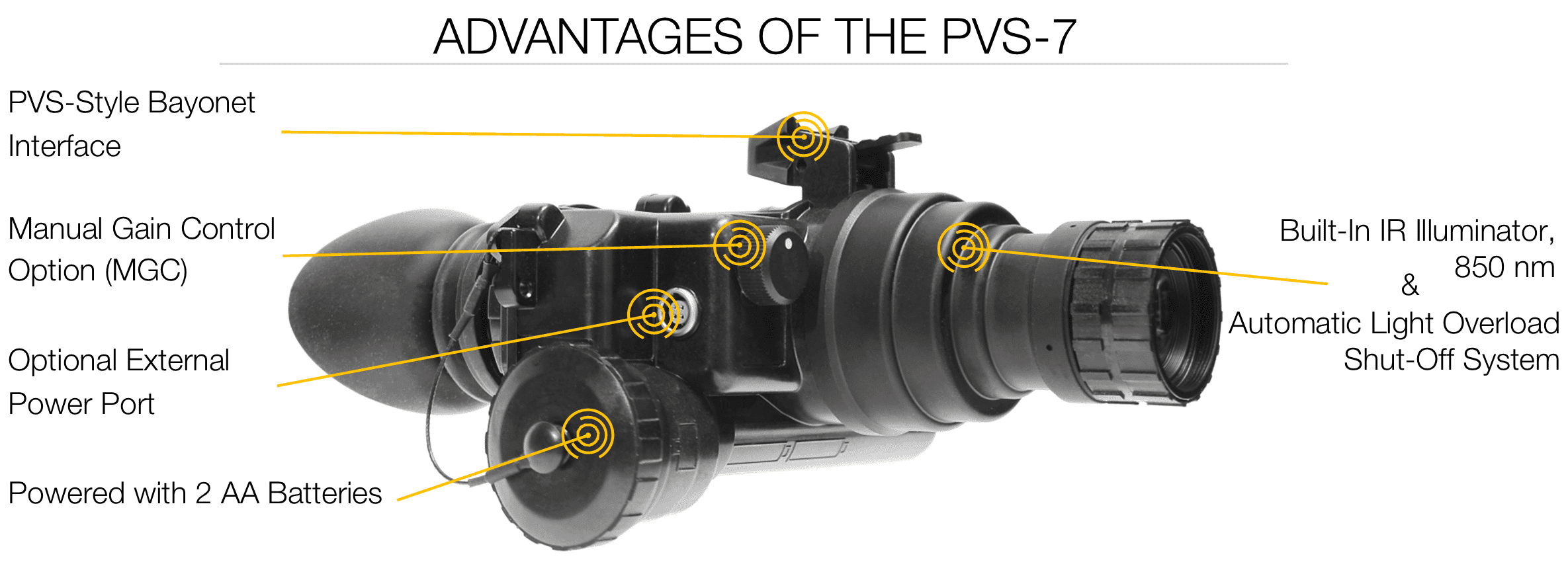

KEY FEATURES Pvs-7 nachtkijker goggle

¨ Dual-Eye Observation

¨ Universal Night Operations Tool

¨ Optional External Power Port

¨ Optional Manual Gain Control

¨ Stow Safety Feature

¨ Extended Range Observation

¨ High Situational Awareness

¨ Suits Multiple Applications

¨ Preferred choice of NATO forces



MAIN APPLICATIONS Pvs-7 nachtkijker goggle

¨ Defence

¨ Coast Guard

¨ Security

¨ Border Patrol

¨ Surveillance

¨ Reconnaissance

TECHNICAL DATA Pvs-7 nachtkijker goggle
Optical Magnification	1X
Objective Lens Focal Length	27mm
Focusing Range	0.25m .. Infinity
Diopter Adjustment Range	-4 .. +4
Built-In IR Illuminator	Yes, 850nm
IR-On LED Indicator	Yes, Concealed into FOV
Interpupillary Adjustment Range	53mm .. 72mm
Automatic Light Overload Shut-Off	Yes, Built-In
Bright Source Protection	Yes
Low Battery LED Indicator	Yes, Concealed into FOV

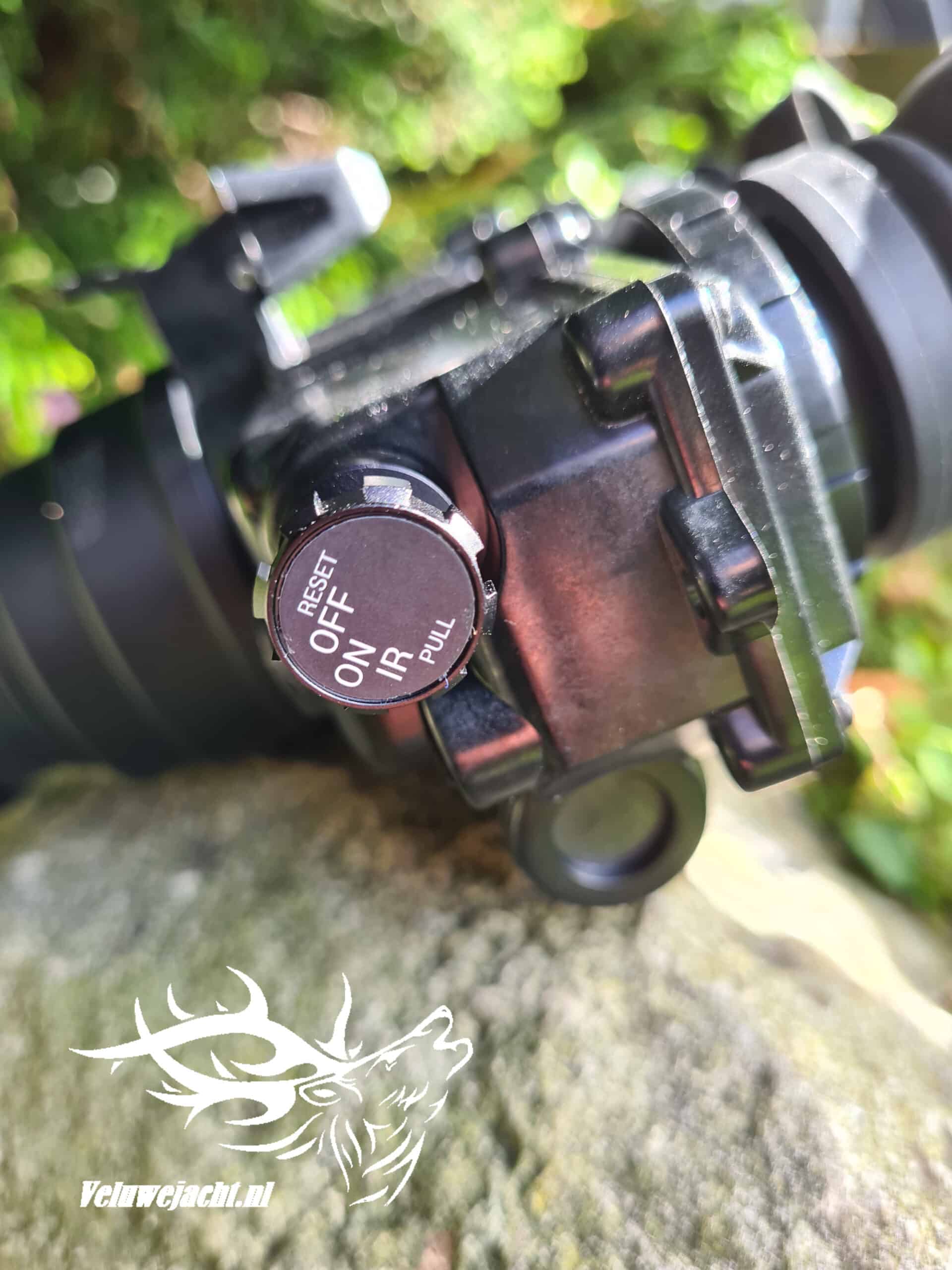

3-Position Switch	Yes
Stow Safety Feature (SSF)	Optional
Automatic Flip-Up-Off Feature	Yes
Automatic Brightness Control	Yes
Power Source	2pcs AA Batteries
External Power Port	Optional : Accepts 4VDC .. 15VDC
Manual Gain Control	Optional
Battery Life on 2pcs AA	Up to 40 Hours
Operating Temperature	-40°C .. +50°C
Warranty	7 Years, Limited
Made In Canada	ITAR-Free

Batteries not included



IMAGE INTENSIFIER TUBES: GEN 2+, GEN 3, ^‡ ECHO, ^‡ 4G

Autogating and White Phosphor options are available with selected tubes. Contact us for more details.

^‡ ECHO and 4G are the registered trademarks of Photonis Technologies S.A.S.





STANDARD EQUIPMENT: WHAT’S IN THE BOX
1	Dual-Tube Night Vision Goggles with Bayonet or Dovetail Bracket Installed
2	Rubber Eyecups (2 Installed on the device) + 2 Spare
3	Demist Shield (2pcs)
4	Sacrificial Window
5	Non-Flip-Up Head Gear PHG-7
6	AA Battery Extension Adapter (Installed on the device)
7	Rubber Daytime Filter with Training Hole (Installed on the device)
8	Neck Cord
9	Soft Carrying Pouch
10	User Manual
11	Waterproof Hard Case (Optional for Gen 2+ Models)
12	7-Year Warranty with Activation Form
13	Cleaning Kit (3-in-1 Multi-Pen + Cleaning Cloth)
